Leading Ionisation Vacuum Gauges for UK Industry – Expert Selection 2025
Published on Saturday, 12 April 2025
Ionisation vacuum gauges represent the gold standard for measuring pressure in ultra-high vacuum (UHV) applications across the United Kingdom. These sophisticated instruments function by detecting ionised gas particles, providing precise measurements where conventional vacuum gauges fall short. From cutting-edge semiconductor fabrication facilities to sophisticated research institutions, ionisation gauges have become indispensable for organisations demanding exceptional accuracy in low-pressure environments. The UK's thriving sectors in aerospace engineering, materials science, and precision manufacturing have increasingly recognised the critical importance of reliable vacuum measurement technology. This guide examines five outstanding ionisation vacuum gauges specifically suited to British industrial and research requirements. Whether you're operating within a university laboratory, pharmaceutical development facility, or advanced manufacturing environment, selecting the appropriate gauge directly impacts your operational efficiency and measurement reliability. We've evaluated leading models based on precision, durability, user-friendliness, and suitability for diverse applications commonly encountered throughout British industry. Understanding the capabilities and specifications of each instrument enables you to make an informed investment that aligns with your technical requirements and operational objectives.
Top Picks Summary

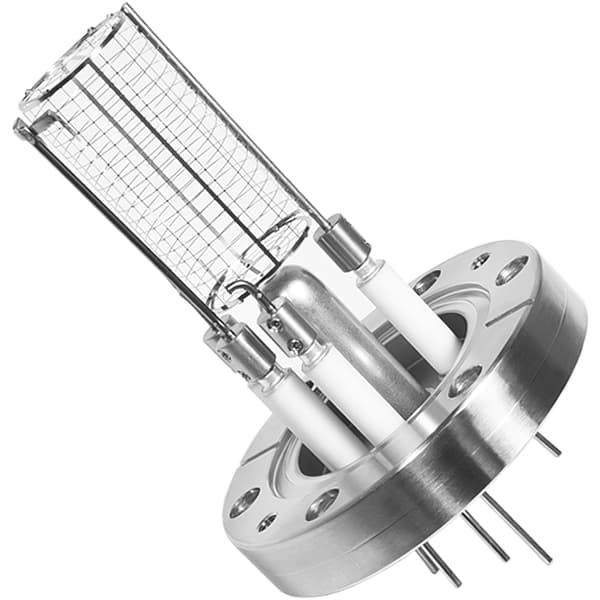

Agilent UHV-24p Nude Bayard-Alpert Ionization Gauge
The Agilent UHV-24p is ranked at the top for Britain in 2025 thanks to its ultra-high vacuum sensitivity, low outgassing nude design and long-term stability, making it the preferred choice for research-grade UHV systems. Although typically priced higher than some competitors, its superior low‑end pressure resolution and proven performance justify the investment for labs that need reproducible measurements where cheaper or filamentless gauges (like MKS cold cathode models) cannot reach the same baseline noise and accuracy.
Pfeiffer Vacuum IKR 270 Compact Full Range Gauge
Pfeiffer's IKR 270 earns its market-leader spot by combining true full-range coverage with a compact footprint and competitive cost, giving British industry and universities a single-sensor solution that reduces system complexity compared with using separate ion and Pirani gauges. Its balance of price, size and integrated electronics makes it an economical alternative to the Agilent for general-purpose vacuum monitoring and a more complete offering than single‑range inverted magnetron gauges like the Edwards or Leybold units.
Edwards WRG-S-NW25 Compact Inverted Magnetron Gauge
The Edwards WRG-S-NW25 is a compact inverted magnetron gauge favored in Britain for industrial processes and OEM integration due to its robustness, fast response and strong local support from a UK-headquartered supplier. It offers a lower capital cost and simpler maintenance than high‑precision Bayard‑Alpert gauges, making it attractive for manufacturing where durability and serviceability matter more than the extreme low‑pressure sensitivity of Agilent or the maintenance‑free appeal of cold cathode designs.

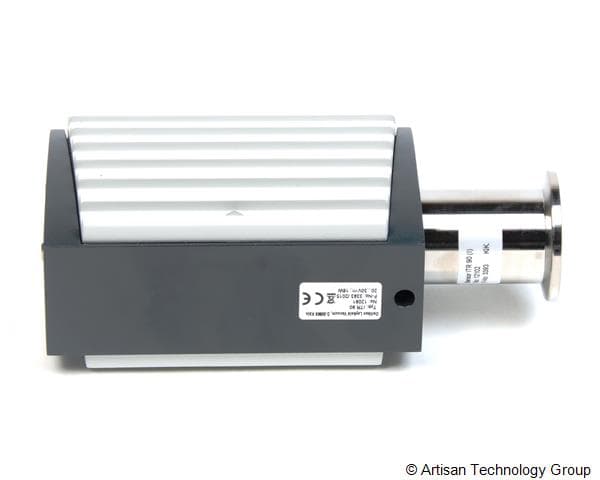

Leybold Ionivac ITR 90 Inverted Magnetron Gauge
Leybold's Ionivac ITR 90 stands out as a versatile inverted magnetron option with a well‑established European service network, delivering consistently good performance at a mid‑range price point. For British buyers it represents a cost‑effective compromise between the high sensitivity but higher cost Agilent Bayard‑Alpert and the simpler cold cathode MKS device, offering easier integration into vacuum systems that prioritise uptime and predictable operating costs.
MKS 422 Cold Cathode Ionization Gauge
The MKS 422 cold cathode gauge is prized in 2025 Britain for its filamentless operation, very low maintenance and resilience in dirty or pulsed plasmas where thermionic gauges can fail. While it typically does not reach the same ultimate low‑pressure resolution as the Agilent Bayard‑Alpert, its lifetime cost advantages and robustness make it the sensible choice for industrial environments and applications where long service intervals and tolerance to contaminants outweigh the need for the lowest possible measurement floor.
These five ionisation vacuum gauges share several distinguishing characteristics: exceptional measurement precision across multiple pressure ranges, robust construction suitable for demanding laboratory and industrial settings, integration compatibility with existing vacuum systems, comprehensive digital interfaces for real-time monitoring, and reliable technical support availability throughout the UK. Each instrument represents proven technology trusted by British research institutions and manufacturing enterprises.
Understanding Ionisation Vacuum Gauge Technology
Ionisation vacuum gauges operate through a fundamentally different mechanism than conventional pressure measurement devices. By generating ions from residual gas molecules and measuring the resulting ion current, these instruments achieve extraordinary sensitivity across extremely low pressure ranges. This technology proves particularly valuable in applications where standard gauges cannot provide adequate precision or where ultra-clean vacuum conditions are essential.
Hot cathode ionisation gauges utilise heated filaments to generate electron beams that ionise gas molecules
Cold cathode designs eliminate filament maintenance requirements, reducing operational costs over extended deployment periods
Measurement ranges typically extend from 10⁻² to 10⁻¹¹ millibar, covering virtually all industrial vacuum applications
Digital readout capabilities provide real-time pressure monitoring with high resolution and rapid response times
Integration with vacuum system controllers enables automated process management and comprehensive data logging
Regular calibration and maintenance procedures ensure sustained measurement accuracy throughout the instrument's operational lifespan
UK-based technical support and spare parts availability simplify troubleshooting and system maintenance
Frequently Asked Questions
Which ionisation gauge is best for research-grade UHV systems?
The Agilent UHV-24p Nude Bayard-Alpert Ionization Gauge is the preferred choice for research-grade UHV systems due to its ultra-high vacuum sensitivity and low outgassing nude design. It holds an average rating of 4.5, making it the top-ranked option for precision monitoring in Britain.
What is the measurement range of the Agilent UHV-24p gauge?
The Agilent UHV-24p provides high sensitivity down to the 10^-11 mbar range. This specific capability allows for precise monitoring in demanding ultra-high vacuum environments where accuracy is critical.
Is there a gauge that covers atmosphere to UHV in one unit?
The Pfeiffer Vacuum IKR 270 Compact Full Range Gauge covers from atmosphere to UHV with reliable auto-ranging. This single-sensor solution reduces system complexity for British universities and industrial users by eliminating the need for separate ion and Pirani gauges.
Which gauge is most suitable for industrial OEM integration?
The Edwards WRG-S-NW25 Compact Inverted Magnetron Gauge is favored for industrial processes and OEM integration. It features an NW25 compact footprint for easy installation on small chambers and offers robust contamination tolerance, which simplifies maintenance compared to other ionisation gauge types.
Conclusion
Choosing the right ionisation vacuum gauge represents a significant decision for any British organisation working within precision measurement environments. The five instruments featured in this guide each deliver exceptional performance, though they serve different operational scales and specialised applications. Your final selection should reflect your specific vacuum requirements, anticipated usage frequency, budgetary parameters, and desired level of technical support. We encourage you to contact equipment suppliers directly to discuss which gauge best matches your facility's distinctive needs. The investment in high-quality vacuum measurement technology pays dividends through improved process control, enhanced product quality, and greater operational confidence. Should you require additional technical information or wish to explore alternative measurement solutions, our comprehensive resource library remains available to support your decision-making process.
