Best Down Imaging Sonar Units for Fishing in the UK — Top 5 for 2026
Published on Monday, 26 January 2026
Down imaging sonar produces photo like vertical views beneath the boat for clear structure and baitfish detection, helping anglers precisely target fish holding zones and submerged features. In the UK market this technology appeals to coarse, game and sea anglers because it reveals weedbeds, rock edges, drop offs and schools of baitfish with a clarity that traditional 2D sonar cannot match. Purchasers now expect integrated GPS and mapping, easy-to-read colour displays, and advanced signal processing such as CHIRP and MEGA imaging for higher resolution. Buyers choose units that balance screen size, transducer performance and price; club and match anglers favour compact, affordable options while boat owners and charter skippers often invest in larger MEGA or CHIRP-equipped displays for offshore and reservoir work. UK-specific considerations include freshwater depth ranges, tidal conditions, and robust build quality for saltwater use, plus strong dealer support and warranty service from domestic retailers.
Top Picks Summary

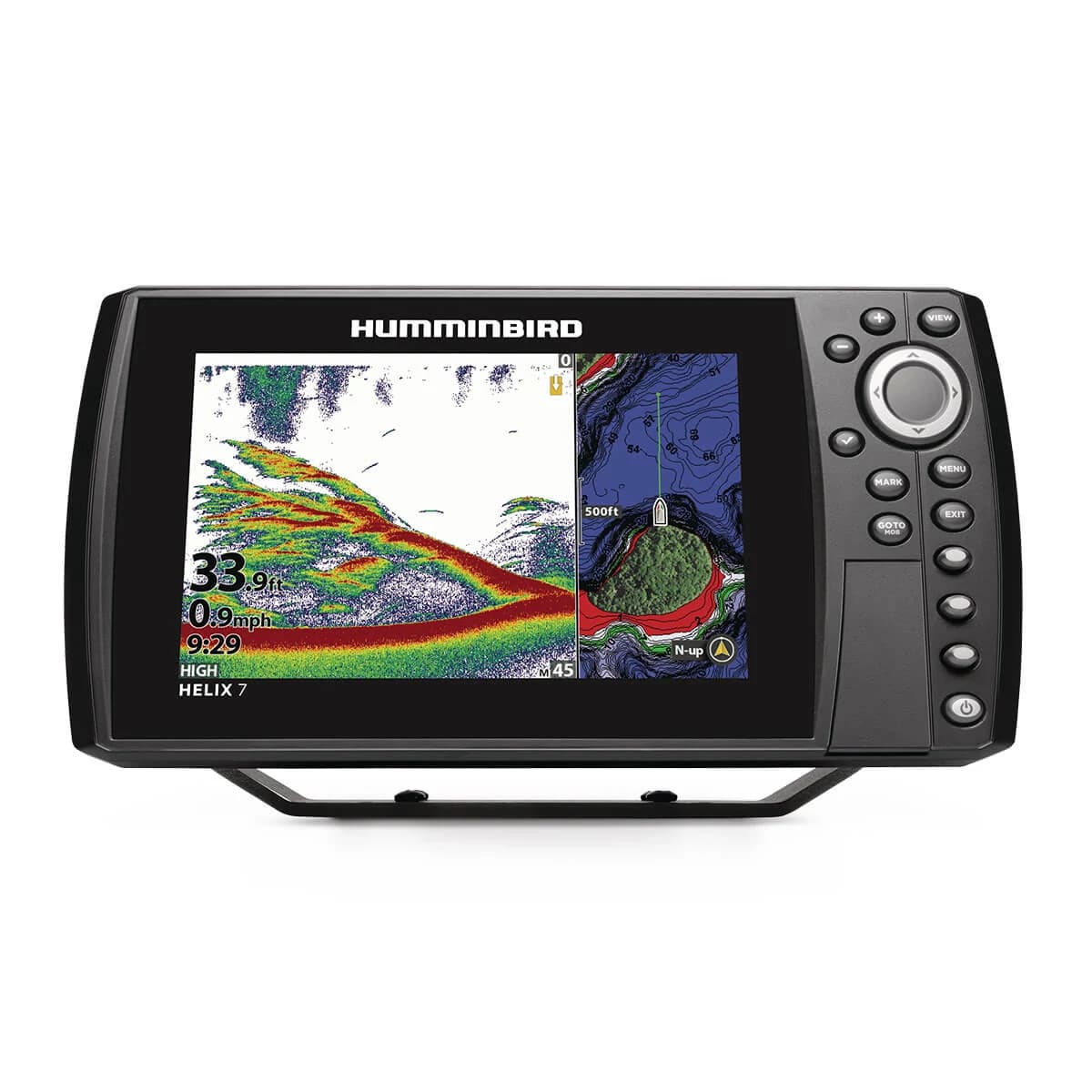

Humminbird Helix 7 CHIRP SI GPS G4N
The Helix 7 CHIRP SI GPS G4N is a strong mid‑range choice for down imaging anglers, combining CHIRP sonar and Side/Down Imaging on a compact 7" display with built‑in GPS and mapping. It holds its position by delivering clearer target separation than basic units like the Garmin Striker Vivid while offering more affordable imaging performance than the top‑end Helix 9 MEGA, making it a cost‑effective option for anglers wanting near‑professional detail without the highest price tag.

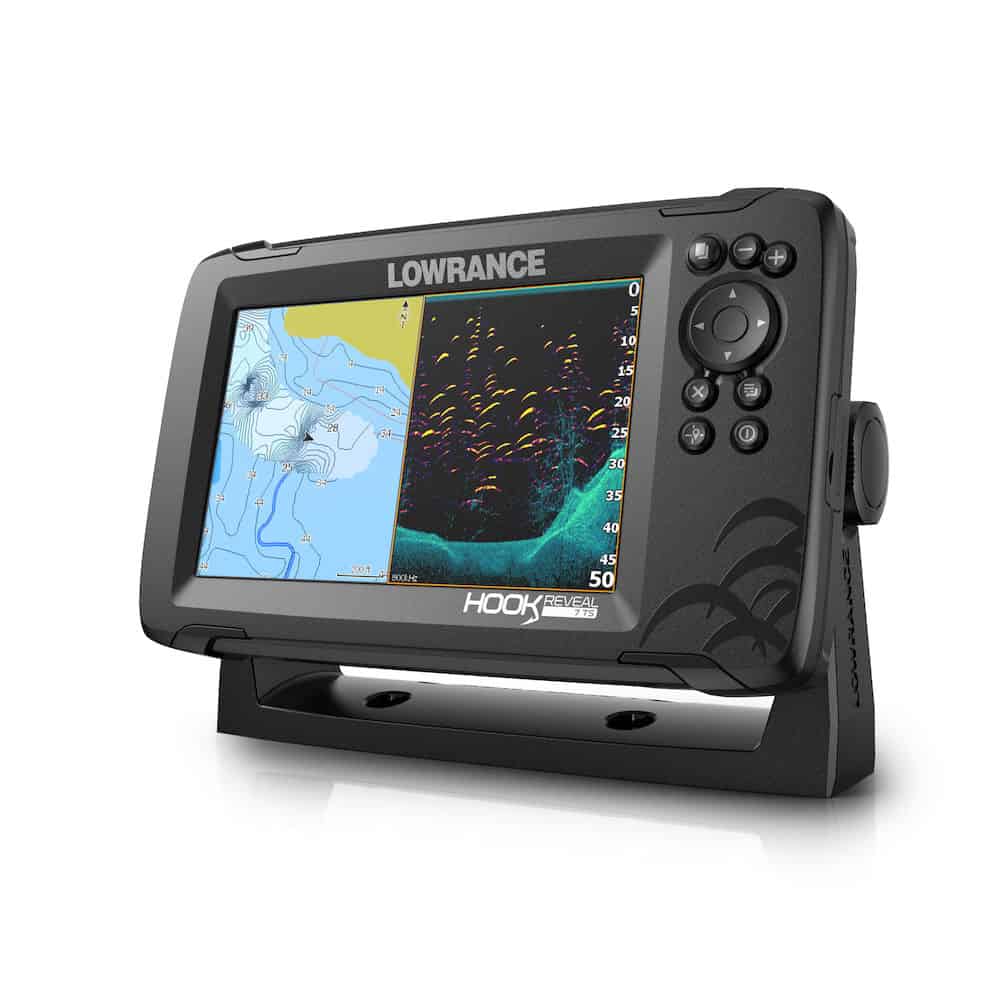

Lowrance HOOK Reveal 7 TripleShot
The Hook Reveal 7 TripleShot stands out as a value‑focused down imaging package because its TripleShot transducer bundles CHIRP sonar, DownScan and SideScan capabilities into one economical unit, delivering versatile imaging for the price‑conscious angler. Compared with Humminbird and Garmin options on this list it sacrifices some of the ultra‑fine MEGA/CHIRP detail but compensates with broad functionality and a lower entry cost, making it ideal for anglers who want both side and down imaging without upgrading to larger, more expensive displays.
£350-550 GBP
Garmin Striker Vivid 7sv
The Striker Vivid 7sv targets anglers who want straightforward, bright down imaging and fast target separation with easy setup and Quickdraw mapping on a budget‑friendly 7" unit. While it doesn't match the MEGA imaging resolution of the Helix 9 or the bundled transducer versatility of Lowrance's TripleShot, its vivid display, simple interface, and lower cost make it an attractive entry or second‑boat device for anglers prioritizing usability and price.

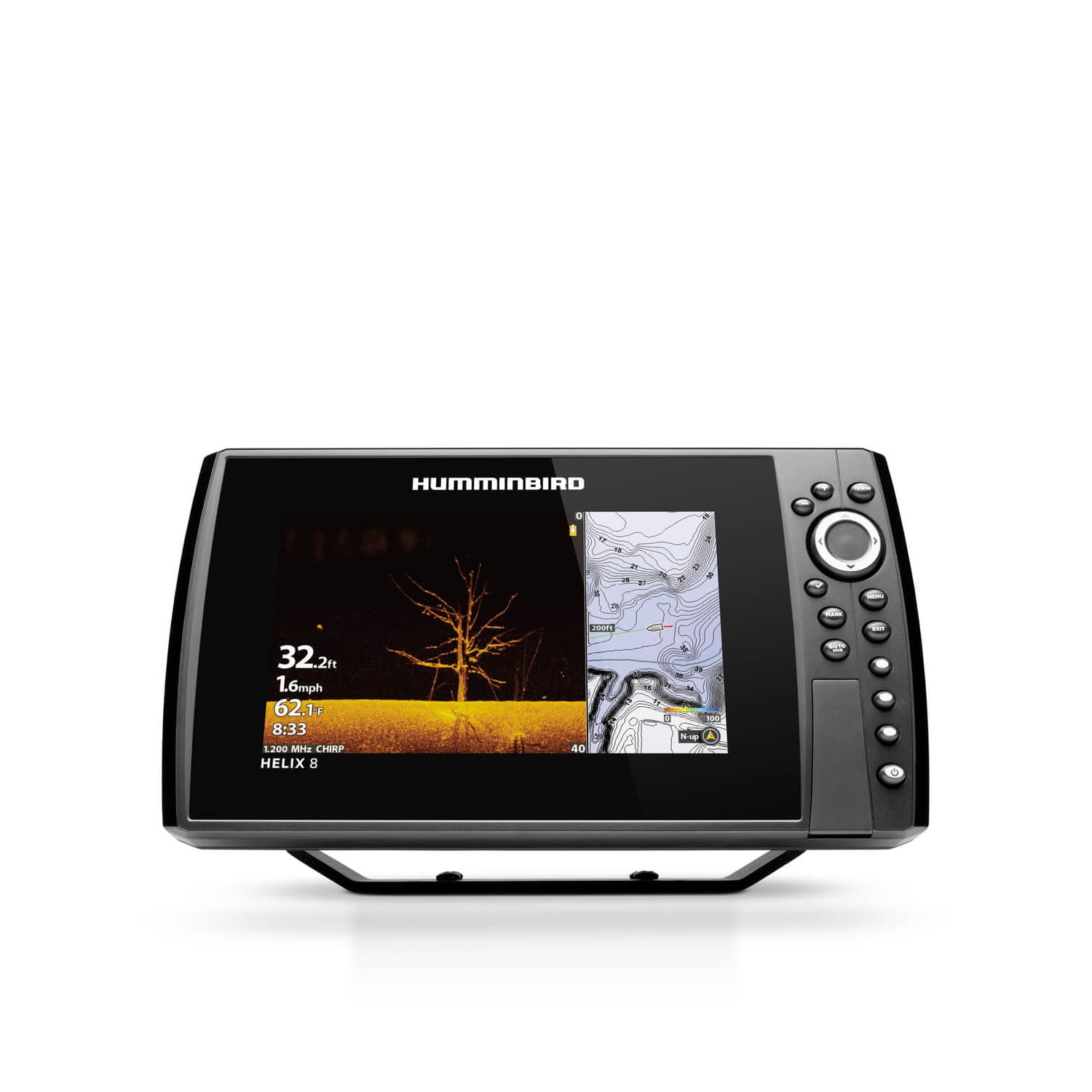

Humminbird Helix 9 CHIRP MEGA SI GPS G4N
The Helix 9 CHIRP MEGA SI+ GPS G4N is the flagship down imaging choice here, delivering the highest resolution MEGA imaging and a large 9" screen for unrivaled detail and target separation in structure and fish arches. It outperforms the smaller Helix 7 and Garmin Striker on raw image clarity and mapping integration—at a premium price—so it’s the market leader for tournament anglers and serious hobbyists who need the best technical imaging regardless of cost.
£900-1200 GBP

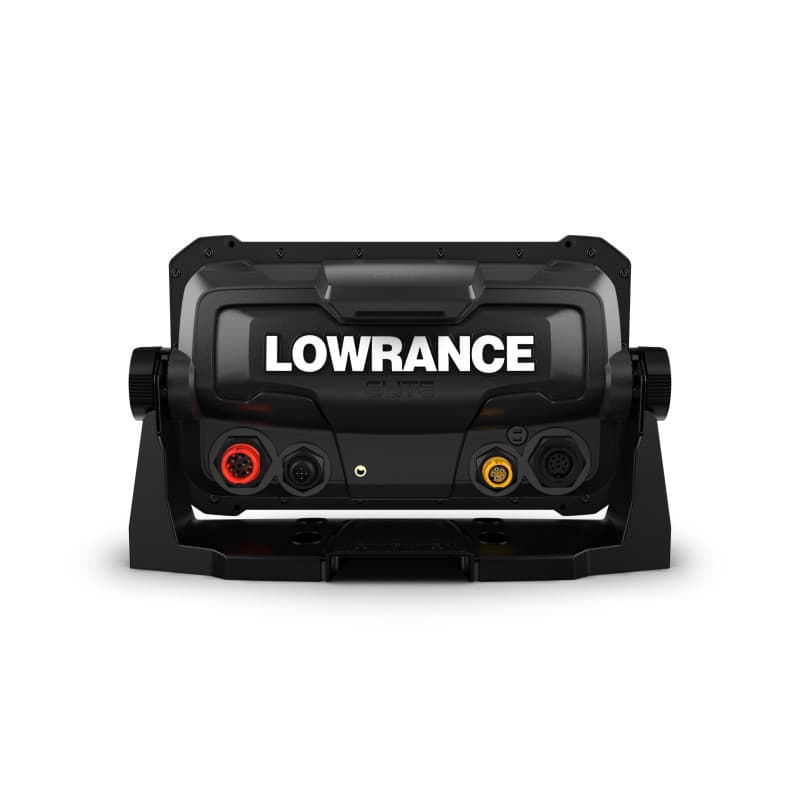

Lowrance Elite FS 9
The Elite FS 9 balances advanced down imaging with user‑friendly features like hybrid touch/key controls, FishReveal and strong mapping options, positioning it as a feature‑rich mid/high‑range choice. It competes with the Helix 9 by offering comparable mapping and imaging tools in some configurations but often at a slightly lower price or with more flexible interface options, making it a smart pick for anglers who want near‑top performance with a more intuitive control scheme.
£700-900 GBP
How down imaging works and the evidence behind its benefits
Down imaging uses high frequency, narrow acoustic beams to create near-photographic vertical slices of the water column and bottom directly beneath the boat. Modern systems combine broadband CHIRP or proprietary high-frequency modes to increase resolution and reduce noise, producing cleaner images of structure, vegetation and bait. Research in fisheries acoustics and applied marine science shows that higher frequency, higher bandwidth signals improve target discrimination and habitat mapping. Field trials and user studies also demonstrate that anglers locating structure and bait visually from down imaging tend to make more confident presentations and convert contacts into catches more often than by using 2D sonar alone.
Higher frequency imaging yields finer detail: frequencies above 400 kHz provide photo-like resolution for structure and fish near the bottom, though effective depth is reduced compared to low frequency modes.
CHIRP and broadband techniques improve signal-to-noise ratio, making small targets and faint returns easier to distinguish in cluttered environments.
Combining down imaging with GPS and mapping enables repeatable site visits and precise marking of fish holding zones for follow-up fishing.
Proper transducer installation and calibration are critical; research and field tests show installation errors produce more imaging artifacts than small differences between models.
User trials indicate anglers using down imaging spend less time searching and more time targeting presentation zones, which often leads to higher catch rates.
Frequently Asked Questions
Which down imaging unit should I buy for fishing UK?
Choose Garmin Striker Vivid 7sv for straightforward, bright down imaging with fast target separation on a 7" screen, plus built-in GPS and Quickdraw contours for spot-spotting and mapping; it’s rated 4.4 and includes CHIRP sonar with ClearVü and SideVü.
What exact down imaging and sonar does Helix 7 CHIRP SI G4N?
Humminbird Helix 7 CHIRP SI GPS G4N pairs CHIRP sonar with Side and Down Imaging, using a 7-inch WVGA display for clear contrast; it also has built-in GPS, mapping support, and NMEA compatibility for waypointing and chart upgrades.
Is Lowrance Hook Reveal 7 TripleShot cheaper than Garmin?
The provided data doesn’t list prices for Lowrance Hook Reveal 7 TripleShot or Garmin Striker Vivid 7sv, so I can’t compare value by cost; it’s rated 4.4 with a 7-inch display and a TripleShot transducer combining CHIRP, DownScan, and SideScan.
Does Garmin Striker Vivid 7sv include GPS and mapping tools?
Yes—Garmin Striker Vivid 7sv includes built-in GPS plus Quickdraw contours, letting you mark spots and build maps on the go; it’s rated 4.4 and uses CHIRP sonar with ClearVü (down-imaging) and SideVü for detailed structure returns.
Conclusion
Down imaging sonar is now a mainstream tool for UK anglers who want photo-like views of structure and bait beneath the boat. The five units reviewed here each bring strengths: the Humminbird Helix 7 CHIRP SI GPS G4N is compact and capable, the Lowrance Hook Reveal 7 TripleShot offers excellent value for multispectral sensing, the Garmin Striker Vivid 7sv provides a crisp, modern display with easy waypointing, the Humminbird Helix 9 CHIRP MEGA SI+ GPS G4N delivers the highest detail and mapping power, and the Lowrance Elite FS 9 offers a large, feature-rich touchscreen for serious anglers. For most UK boat anglers seeking the best combination of imaging detail, mapping and display size, the Humminbird Helix 9 CHIRP MEGA SI+ GPS G4N stands out as the top choice. I hope you found what you were looking for; you can refine or expand your search using the site search to filter by screen size, price, transducer type or freshwater versus saltwater suitability.
