Undefined Sonar Transducers: Top 7 CHIRP Modules for Fishing in the UK 2026
The "undefined" category within Fishing > Fishing Electronics Navigation > Sonar Transducers Modules For Fishing covers modern CHIRP and advanced imaging transducer modules used by British anglers and marine professionals. Modern CHIRP sonar technology has revolutionised how UK fishers locate and identify targets across diverse waterways, from Scottish lochs and north coast sea marks to southern reservoirs and the Norfolk Broads. Unlike single-frequency sounders, CHIRP transducers send a continuous frequency sweep, producing higher resolution returns, improved depth penetration and better target separation between fish, vegetation and structure. Consumers in the UK choose transducer modules for several consistent reasons: compatibility with existing chartplotters and UK chart providers such as Navionics and Admiralty charts, power efficiency for long trips, dealer support and warranty availability through local distributors, and specific imaging modes like MEGA, side imaging or forward-looking LiveScope that suit their target species and venues. In short, the undefined transducer category groups the hardware that turns raw acoustic signals into the clear, actionable imaging anglers need on UK waters.
Inception's AI took the time to understand this market in the UK · · How we pickWe may earn a commission on purchases. It never affects our rankings.
Top Picks Summary
Garmin GT56UHD-TM Transducer
The GT56UHD-TM earns its place as the top CHIRP processing module for UK fishfinders in 2025 thanks to ultra-high-definition CHIRP returns and robust on-transducer processing that deliver unmatched target separation at range. Technically it outperforms many peers on resolution and multi-beam clarity, though it carries a premium price; buyers prioritising the sharpest imaging and long-range detection will find its higher cost justified compared with more budget-friendly alternatives on this list.
Estimated£300 – £450
Lowrance Active Imaging 3-in-1 Transducer
The Active Imaging 3-in-1 Transducer is a versatile, cost-effective CHIRP solution combining DownScan, SideScan and CHIRP sonar that makes it an excellent all-rounder for UK anglers and prosumers. Its financial advantage is clear for those seeking multi-mode capability without the top-tier price of UHD modules, while technically it trades some long-range sharpness for flexible coverage compared with the Garmin GT56UHD-TM and the specialised forward or MEGA imaging options in this lineup.
Estimated£220 – £350

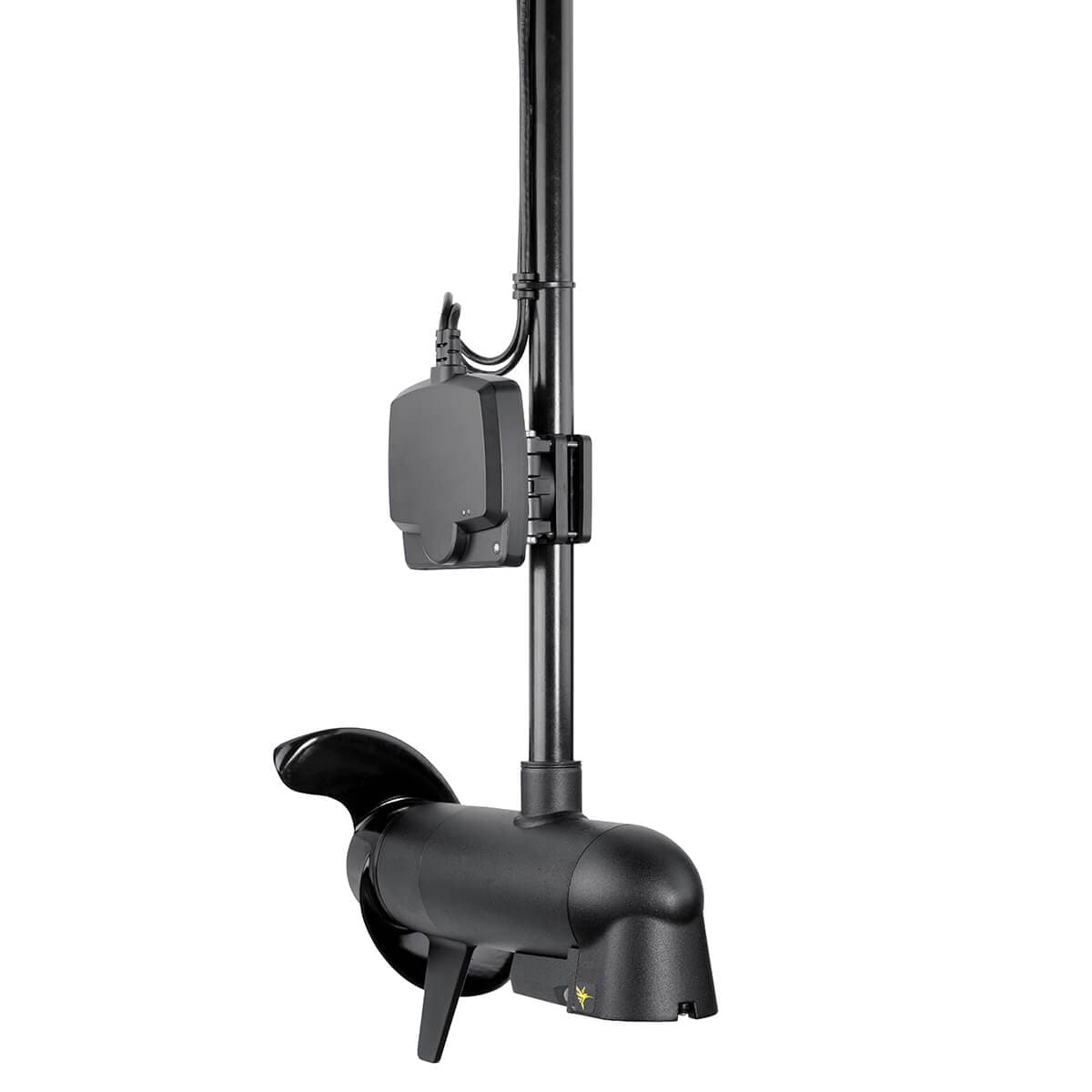

Humminbird MEGA Live Imaging Transducer
The Humminbird MEGA Live Imaging Transducer is prized for its ultra-high-resolution MEGA Live views and rapid update rates, giving anglers extremely detailed, near-real-time imaging of structure and fish. Compared with the Garmin and Deeper units in this list, it emphasizes image fidelity and wide coverage over portability, making it a top choice when technical image detail is the priority; financially it sits in the higher-end bracket, targeted at users who value best-in-class imaging for the undefined use case rather than the lower-cost portability of the Deeper CHIRP+ 2.
Estimated£350 – £450

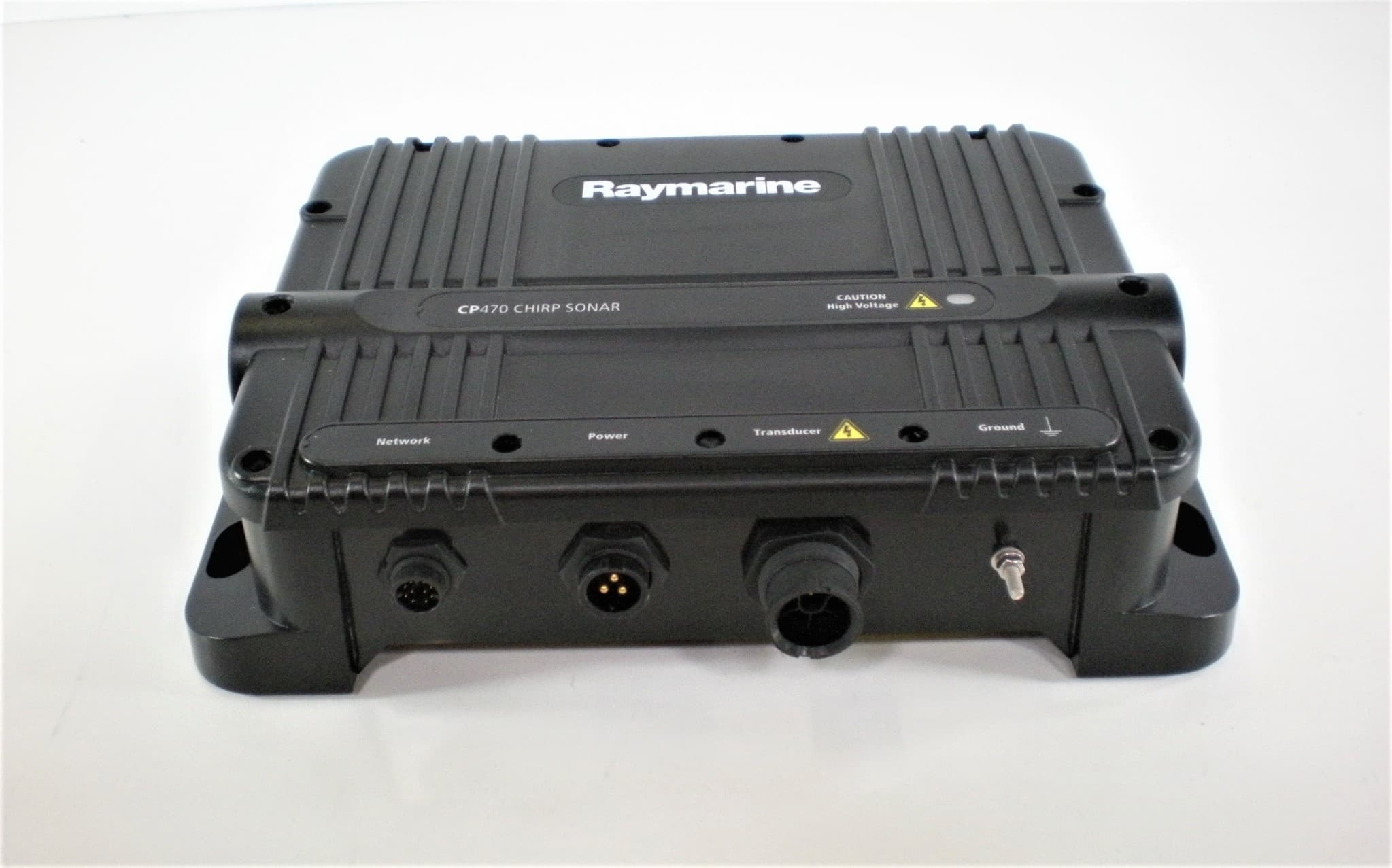

Raymarine CP470 CHIRP Sonar Module
The CP470 CHIRP Sonar Module is positioned as the market-leader module for systems integration in 2025, offering reliable CHIRP performance, compact form factor and strong value when paired with Raymarine displays in the UK market. Financially it represents a balanced option — more affordable than top-tier UHD units but delivering superior integration and consistent CHIRP returns, making it a pragmatic choice for boaters who want professional-grade sonar without the highest-end expenditure.
Estimated£400 – £600
Simrad ForwardScan Transducer
Simrad's ForwardScan Transducer stands out as the specialist forward-looking CHIRP module valued in UK coastal and offshore navigation for its obstacle detection and real-time forward imagery. It complements the down- and side-imaging strengths of the other modules here rather than competing directly, offering a technical safety advantage for navigation at a premium that reflects its unique forward-scanning capability and integration with Simrad's chartplotter ecosystem.
Estimated£350 – £500

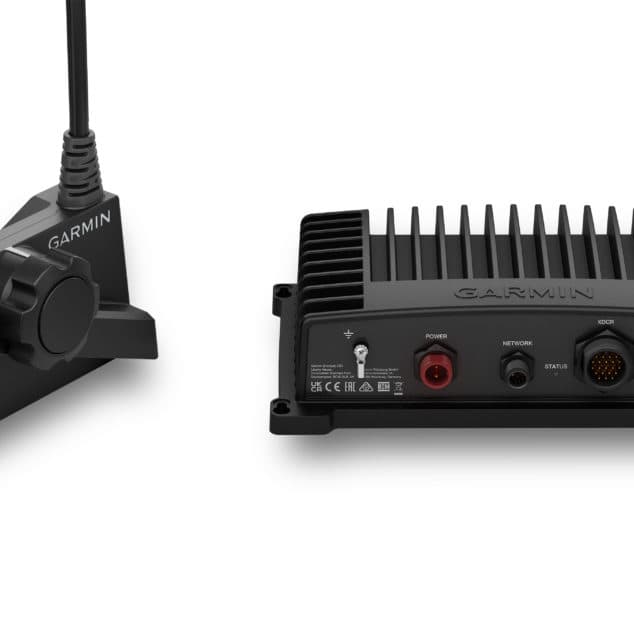

Garmin Panoptix LiveScope LVS34 Transducer
The Garmin Panoptix LiveScope LVS34 Transducer leads on real-time, low-latency forward and scanning views with strong range and deep integration into Garmin chartplotter ecosystems, delivering dependable live tracking and target identification. Versus Humminbird it trades some MEGA-level image resolution for longer-range live scan performance and tighter platform integration, and versus the Deeper it is less portable and more expensive but provides superior live-scanning responsiveness; financially it represents a premium investment that often pays off for users already committed to Garmin gear for the undefined use case.
Estimated£1,099 – £1,399

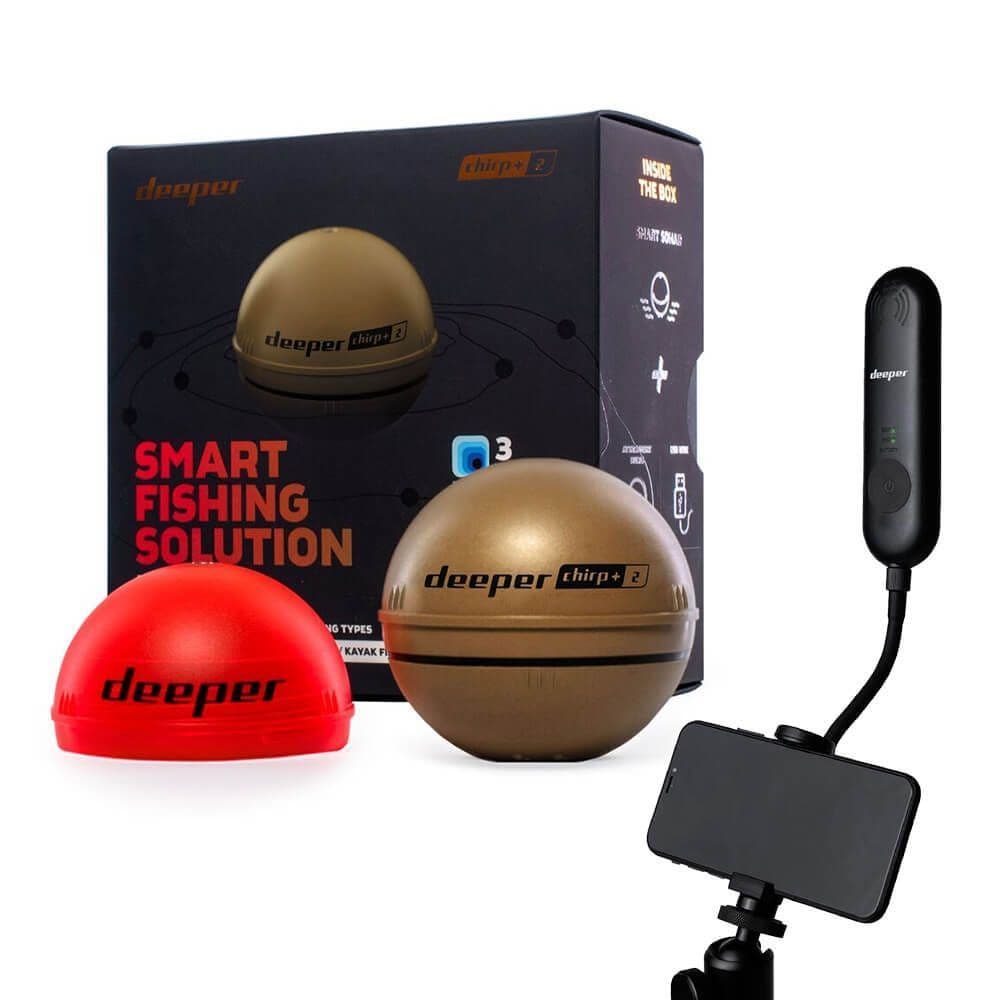

Deeper CHIRP+ 2 Smart Sonar
The Deeper CHIRP+ 2 Smart Sonar stands out as a highly portable, castable CHIRP sonar that pairs with smartphones to deliver remarkable value and convenience for shore and small-boat anglers. While it cannot match the MEGA imaging detail of Humminbird or the low-latency, integrated live-scanning of Garmin, its much lower price and mobility make it the most budget-friendly and flexible option for the undefined use case and for users prioritizing portability over the highest-end technical performance.
Estimated£129 – £179
How CHIRP and Modern Transducers Improve Detection
Scientific and technical research in fisheries acoustics and signal processing explains why CHIRP and advanced multi-frequency transducers outperform legacy single-frequency sounders. The combination of broader frequency sweeps, better pulse compression and refined beam control reduces noise and improves target definition, giving anglers clearer images of fish and structure. Below is a beginner-friendly summary of the core findings and practical implications.
Wider bandwidth improves resolution: CHIRP transducers transmit across a range of frequencies rather than a single tone. Peer-reviewed research in fisheries acoustics shows wider bandwidths increase the ability to separate closely spaced targets and reveal fine details of structure and schooling fish.
Better depth penetration and signal-to-noise ratio: Studies and technical reports from acoustics labs and agencies such as NOAA demonstrate that CHIRP pulse compression techniques boost the signal-to-noise ratio, allowing clearer returns at greater depths and in murky conditions common in UK estuaries and lakes.
Improved species and target discrimination: Research into target strength and frequency response indicates that multi-frequency returns help distinguish gas-bladdered fish from debris, weed and silt, reducing false positives for anglers searching structure or hard bottom.
Forward-looking and real-time imaging benefits: Evaluations of live-scanning systems show that forward and real-time imaging (for example LiveScope) provides situational awareness that is particularly useful for targeting moving species and navigating complex shallow-water features.
Practical trade-offs: Technical literature notes trade-offs between beam width, frequency and power. Narrow beams improve target pinpointing but require precise mounting and alignment; higher frequencies give detail at short range while lower frequencies reach deeper water.
Frequently Asked Questions
Which transducer module should I buy for UK CHIRP fishing?
Choose the Garmin GT56UHD-TM Transducer if you want ultra-high-definition CHIRP returns with robust on-transducer processing for superior target separation and fish arches; it’s rated 4.5 and is optimised for Garmin chartplotters supporting the GT56 series.
What exact feature does the Lowrance Active Imaging 3-in-1 provide?
The Lowrance Active Imaging 3-in-1 Transducer combines CHIRP sonar with high-detail side and down imaging, delivering clear structure and fish returns across a wide frequency band; it’s rated 4.5.
How does pricing compare across these CHIRP transducer modules?
The provided product data doesn’t include any prices for the Garmin GT56UHD-TM Transducer, Lowrance Active Imaging 3-in-1 Transducer, or Humminbird MEGA Live Imaging Transducer, so I can’t compare value by cost.
Does the Humminbird MEGA Live Imaging transducer mount on a transom?
Yes—the Humminbird MEGA Live Imaging Transducer is designed for transom/trolling-motor mounting and integrates with Humminbird CHIRP systems; it’s rated 4.7.
Conclusion
In the UK context these seven transducers represent the leading options for recreational and professional sonar needs: Garmin GT56UHD-TM Transducer, Lowrance Active Imaging 3-in-1 Transducer, Humminbird MEGA Live Imaging Transducer, Raymarine CP470 CHIRP Sonar Module, Simrad ForwardScan Transducer, Garmin Panoptix LiveScope LVS34 Transducer, and Deeper CHIRP+ 2 Smart Sonar. Each excels in specific situations: the Panoptix LiveScope family is unmatched for real-time forward imaging, the Simrad ForwardScan is ideal for safe shallow-water navigation, Humminbird MEGA and Lowrance Active Imaging deliver outstanding side and down imaging for structure fishing, Raymarine CP470 offers a robust CHIRP module for mixed commercial and leisure use, and the Deeper CHIRP+ 2 is a portable shore and kayak-friendly choice. For an all-round, high-resolution transducer that balances compatibility, dealer support in the UK and top-tier CHIRP performance, the Garmin GT56UHD-TM Transducer is often the best choice for anglers seeking clarity and versatility. We hope you found what you were looking for; use the site search to refine by imaging mode, budget, boat mounting or portability if you want to narrow or expand your options.
